Frame Question

Post Tue Apr 20, 2010 5:52 pm

Posts: 1
I was wondering if someone out there can help me with determining what year of frame I have. I plan on putting it up for sale on E-Bay, or at some swap meets, so I would like an idea on what I have. I'm not sure if its a 58 or 68. From what I have read on a post, about early Ironhead Frames, I am not sure what I have. The Engine Steady is Stamped Steel, under the seat casting is A8. The front portion of the swingarm is Stamped 47568-52, and is 1" shorter (19' overall) than newer Ironhead swingarms. I'm sure its a XLCH (no dogleg at the rear motor mounting) with the oil tank bracket under the seat. I have all kinds of pictures, if I could figure out how to post them.

Post Wed Apr 21, 2010 12:20 am

Posts: 2688
Location: Los Angeles, CA
brane fart :(

Post Wed Apr 21, 2010 7:36 am

Posts: 228
Location: Burlington Iowa USA
That oil tank mount under the seat for the lunch box oil tank would make it a 1968.
Larry

Post Thu May 06, 2010 7:24 am
k56 User avatar

Posts: 57
A8 would make it january of 1968 / 52 - 56 were stamped numbers before letters, ie., 5B would make the frame february of 1955. 57 and up were stamped like your's is, letters before numbers. if you look at the engine steady on a "K" frame (52-56) it is WAY different. good luck

Post Thu May 06, 2010 10:54 am

Posts: 217
Location: Palo Alto, CA
Others may want to correct me if I'm wrong, but I don't believe 52-53 were stamped at all.

I believe this started with the 54 model year, ie around 3G or so, no?

Post Sun May 09, 2010 2:16 am

Posts: 591
Location: Crewe, Great Britain

suicideshovel65: Others may want to correct me if I'm wrong, but I don't believe 52-53 were stamped at all.

I believe this started with the 54 model year, ie around 3G or so, no?


I've got 2 early K frames, none are coded.

But I don't know when they started the month coding. A mate has a 56 KH that is coded but I forgot what it looks like!!! He lives a bit far and don't go out much on it, so it might takes some time before I see that bike again!!!

Patrick

Post Tue May 11, 2010 2:16 am

Posts: 32
Location: Western Australia

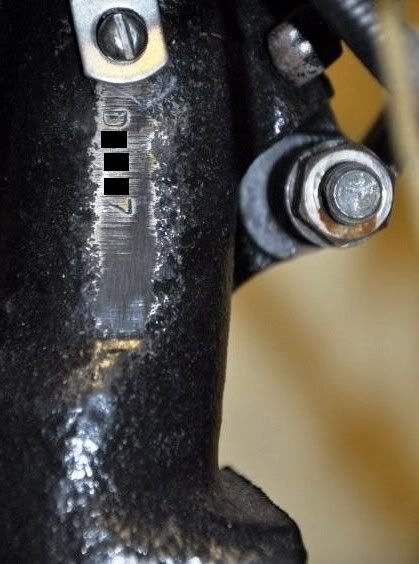

If it’s a 1968 Sportster frame it may have additional ID stamped on or near the steering head. (Said additional ID wasn't used prior to 1962 models.) The extra ID may consist of one capital letter followed by three or four numeric characters. It is unclear exactly what letter, or letters, 1968 is indicated by and H-D repeatedly refused to clarify the situation for me but it could be H, J, K or L. As an example, the letter D was used on the 1965 frame below:


The earliest example I have of a date code on a K-series frame is 4I (1954, September). Eric

Post Wed May 12, 2010 6:19 pm

Posts: 217
Location: Palo Alto, CA
Earliest one I have is 3K, which leads me to believe it started in late '53 for the '54 production year.
